Laverda combines conveyor puller idler to repair and replacement

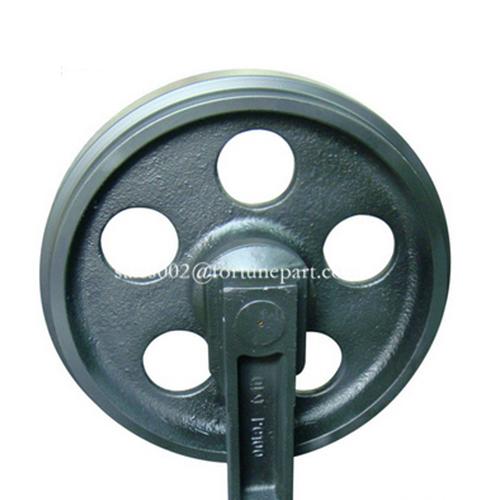

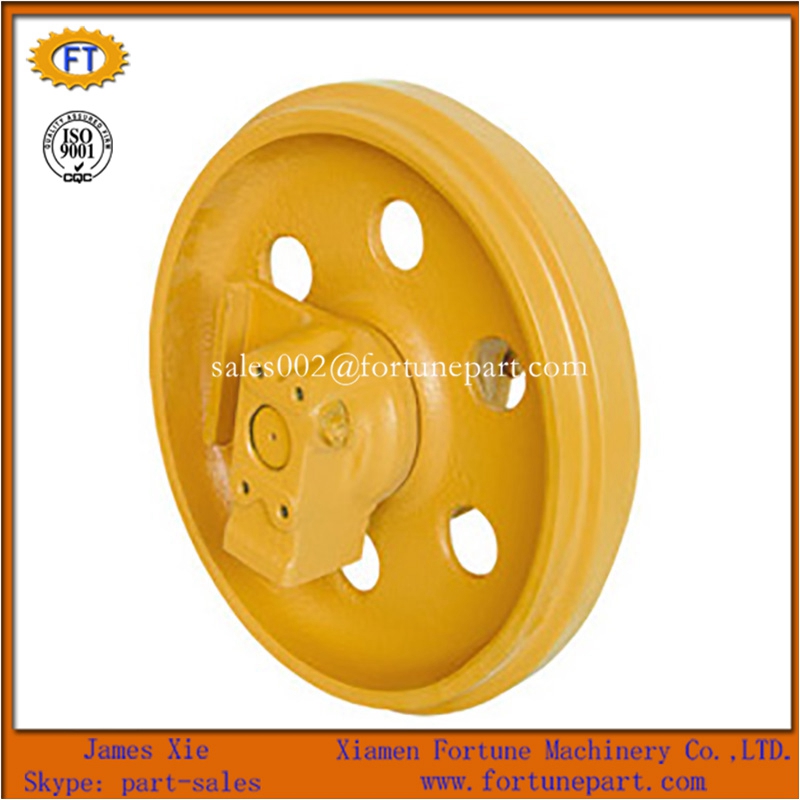

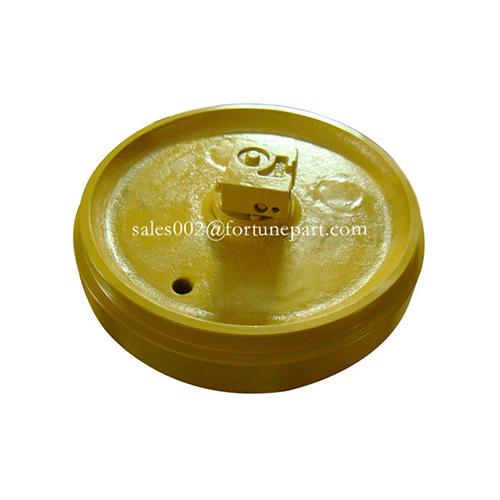

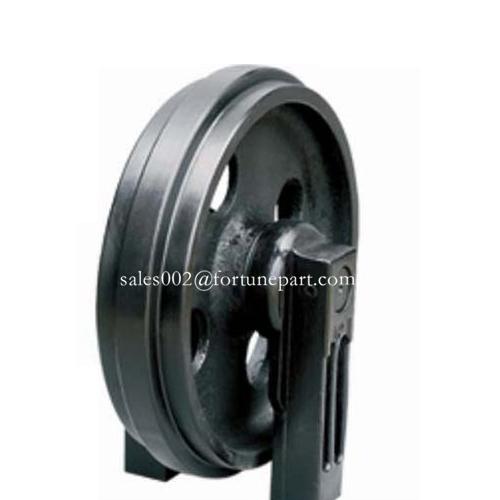

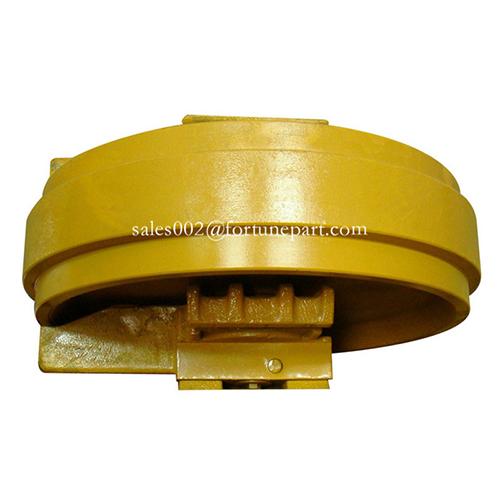

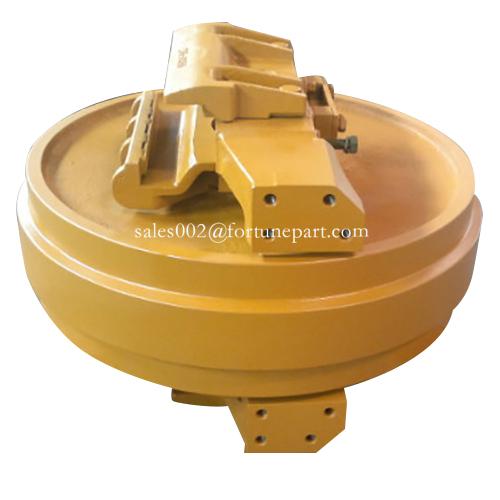

Excavator idler also names track idler,tensioner idler,recoil spring idler,
We have idlers of wheel rim casting steel and welding type, wheel rim grinding ring welding type and wheel body casting type. The wheel body is made by high precision alloy steel and use proper heat treatment to make sure the hardness on the surface and proper hardness layer. This makes the idler can work in various bad condition. High quality shaft, bushing, floating sealing system and oil increase lubrication effect and reduce friction. Sliding-type leg design reduce contact pressure and wear&tear, and prevent impact.
| Xiamen Fortune Industrial Co., Limited | |
| Product Name | Laverda combine conveyor track idler |
| Production Standard | OEM |
| Material | 40SiMnTi |
| Finish | Smooth |
| Painting Color | Black or yellow |
| Process | Forging & casting |
| Surface Hardness | HRC52-58, Depth:8mm-12mm |
| Quality Guarantee | One Year |
| Certification | ISO9001-9002 |
| Delivery Time | Within 10--20 days after advance payment receive |
| Package | Fumigate seaworthy packing and Export Standard Package |
| Payment Term | TT, L/C, Paypal, Western union,D/P |
| Business Scope | excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc |
| Our excavator and dozer track idler wheel advantage(Why Choose our undercarriage parts) |
| 1.Quench-tempering processes to guarantee genuine mechanical properties |
| 2. High hardness :HRC52-58,deepth:8mm-12mm |
| 3. Deep hardened wear surface |
| 4. High strength and superior wear resistence to bending and breakage |
| 5.Strict Quality Control |
| 6.Precise design and carefully manufactured |
| 7.Certificated by ISO9001:2008 |
| 8.Produce as per client's samples,designs and drawings |
| Excavator and bulldozer undercarriage parts Track Idler Functions |
| 1.Guide the track in and out of the track rollers. |
| 2.Intermittently support the machine's weight |
| 3.Provide a way to control slack and tension |
Crawler Komatsu excavator and bulldozer undercarriage track idler part number and Berco number list
| Idler | |||||
| Part No. | Ref No. | Part No. | Model | Description | (kg) |
| SJI1400 | 201-30-00012 | PC60-5 | Idler Group | 65 | |
| SJI1500 | 203-30-00133 | PC100-5, 120-5,6 | Idler Group | 80 | |
| SJI1600 | 205-30-00182 | KM1641 | PC180-2, 200-3 | Idler Group | 130 |
| SJI1700 | 20Y-30-00030 | KM1642 | PC200-5, 220-5 | Idler Group | 130 |
| SJI3101 | 20Y-30-00321 | KM3299 | PC220-7,8, PC228 | Idler Group | 130 |
| SJI1800 | 207-30-00071 | PC300-1,2,3 | Idler Group | 190 | |
| SJI1900 | 207-30-00160 | KM2018, KM1927 | PC300, 280-3, 300-5 | Idler Group | 190 |
| SJI2000 | 208-30-00070 | PC400-3 | Idler Group | 290 | |
| SJI2100 | 208-30-00200 | KM1973 | PC400-5, PC400 | Idler Group | 290 |
| SJI7100 | 101-30-61210X | KM0914 | D20 | Idler Group | 65 |
| SJI3117 | 113-27-31320 | KM0840 | D31-17, D30, D37 | Idler Group | 90 |
| SJI9208 | 128-04-0H92 | IN3810 | D39 | Idler Group | 150 |
| SJI9207 | 124-30-00102 | 124-30-00103 | D39E,P-21 D41E,P-6 Early S/N | Idler Group | 124 |
| SJI9206 | 124-30-00105 | 124-30-00106 | D41E,P-6 Late S/N | Idler Group | 160 |
| SJI9205 | 134-30-00201 | KM6100 | D61E,P | Idler Group | 228 |
| 144-30-00038 | KM834 | D65 | Idler Group | 210 | |
| SJI8300 | 14X-30-00112 | KM2107 | D65-12, D85SS-2, D85ESS-12 | Idler Group | 195 |
| SJI1550 | 17A-30-00040 | KM836 | D155 | Idler Group | 474 |
| SJI2200 | 195-30-00283 | KM837 | D355 | Idler Group | 650 |
Caterpillar excavator and dozer undercarriage accessories idler part number and Berco number list
Idler
Part No.
Ref No.
Part No.
Model
Description
(kg)
SJI2900
4I7337
E110B,E120B,311,312
Idler
Group
90
SJI3000
CR5732
7Y1601,1132907
E200B,EL200B,315,318,320
Idler
Group
135
SJI3200
094-1384
E240,E240B,
-C
Idler
Group
120
SJI3150
4C2084
CR5127
225-
6.91"7.50"PITCH
Idler
Group
160
SJI3420
4E8500
CR5132
235
Idler
Group
270
SJI3100
CR5786
115-6337
322B
Idler
Group
132
SJI3300
CR5884
1028155
325
Idler
Group
170
SJI3400
CR6087
1028152,
7Y0762
330
Idler
Group
240
SJI3450
CR6597
1156366
345
Idler
Group
255
SJI1311
CR6403
1358903
350
Idler
Group
270
SJI3650
136-2429
365
Idler
Group
525
SJI3750
194-1157
135-8904
375,385
Idler
Group
590
SJI3500
960253
E300B
Idler
Group
198
SJI5900
8J6562
2T0048,2154459
615/623
Bottom Idler
Idler
Group
77
SJI5901
3G1086
2154458,2T0047
615/623
Center Idler
Idler
Group
40
SJR1001
2T0046
3G7490
615/623
Upper roller
Roller
Group
18
SJI5903
1447321,
8W4731
3G0897,
3J4778
631-657
Floor roller
Roller
Group
21
SJI5902
9J1035
633C,D
BOTTOM IDLER
Idler
Group
80
SJI8400
CR3004
9N4173
D3B,C,G/D4B,C,G
Idler
Group
110
SJI8900
CR5420
D5C-D5G
Idler
Group
175
SJI8700
CR3189WB
7P9017
953
Idler
Group
180
SJI8701
CR3189
7T3501
WS3
D5B
W/O BRACKETS
Idler
Group less bracket
135
SJI8800
CR4007WB
7P2719
963
Idler
Group
195
SJI3600
CR4587
190-1534
D4H
(475mm)
Idler
Group
81
SJI3700
CR4585
190-1551
D4H
(500mm)
Idler
Group
90
SJI3800
CR4589
190-1546
D5H,D6M
Idler
Group
112
SJI7800
CR4094
6L9210
D6D
with brackets
Idler
Group
170
SJI7700
8E4007
D5H,
517 Skidder
Idler
Group
160
SJI3900
CR4909
151-4587
D6H,D6R
(545mm)
Idler
Group
147
SJI4000
CR4616
6T3216
D6H,D6R
(570mm)
Idler
Group
159
SJI4100
CR4911
135-9896,
6Y2031
D7H,
D7R (585mm)
Idler
Group
240
SJI4200
CR4593
192-0216
D7H,D7R
(628mm)
Idler
Group
260
SJI1551
CR4096
6L9212
D8H,K
W/ BRACKETS
Idler
Group
329
SJI4300
CR4531
111-1729
D8N/R/T
(620mm)- rear
Idler
Group
300
SJI4301
244-1324
D8N/R/T
rear with Landfill guarding
Idler
Group
300
SJI4400
CR4530
111-1730
D8N/R/T
(698mm)- front
Idler
Group
350
SJI4401
244-1323
D8N/R/T-
front with Landfill guarding
Idler
Group
350
SJI4500
CR4681
125-4655
D9N/R/T
Idler
Group
450
SJI4501
167-1947
D9N/R/T
with Landfill guarding
Idler
Group
450
SJI7400
125-3537
9W9734
D10N/R/T
Idler
Group
590
SJI7500-2
156-0313
9W9650
D11N/R/T
Idler Shell
Idler
Shell
930
FAQ
1.What Xiamen Fortune Industrial Co.,Limited supply?
We mainly supply crawler excavator and dozer undercarriage parts, such as Track roller, Carrier roller, Sprocket, Idler,Recoil spring assy, Track chain, Track shoe, Track bolt&nut,Track chain guard, Excavator bucket,Bucket teeth&adaptor, Bucket Link,Cutting Edge and End Bits, Hydraulic Cylinder, Bucket pin&bush,Slewing Bearing, Long reach boom and arm, etc.
2.How to confirm the spare parts will fit our crawler excavator and dozer?
Please send us your excavator and dozer model name, part number, Berco number, or technical drawings and dimensions
3.How about the construction machinery excavator and dozer undercarriage parts Quality Control?
We have an excellent QC system, the QC team will inspect every production process,quality and specification, to be sure best quality and correct size, untill packages finished and loaded into container.
4.What is payment term?
TT, L/C, Paypal, Western Union, other payment term also can be negotiated.
Choose genuine quality excavator track idler for construction machinery parts,
Fortunepart will be your best undercarriage parts supplier in China.
