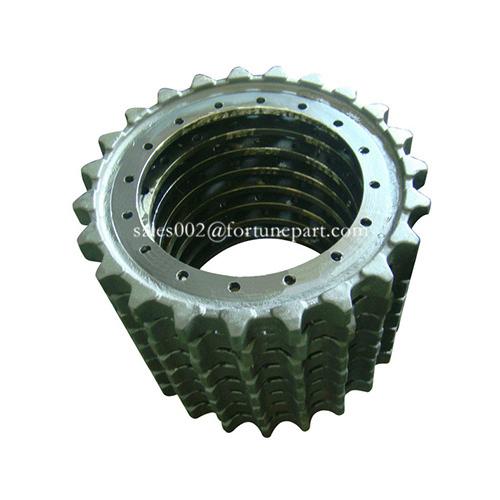

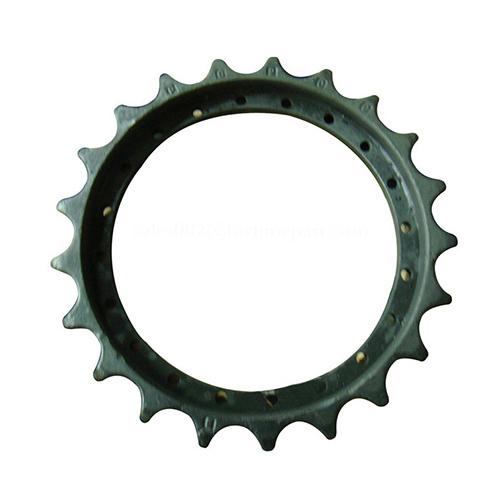

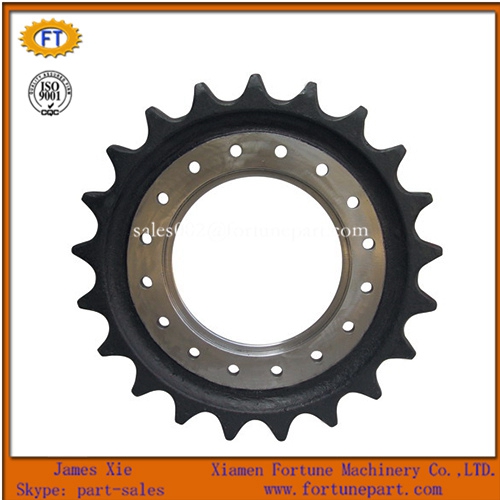

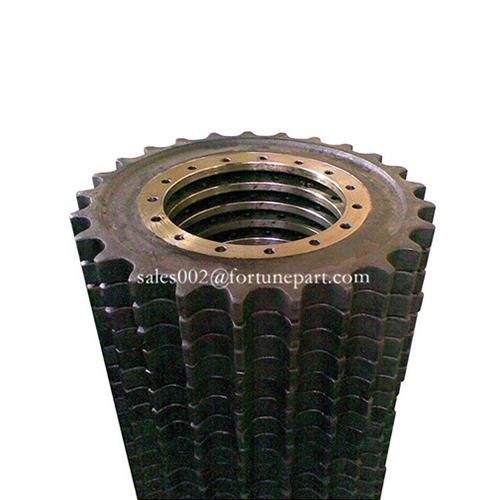

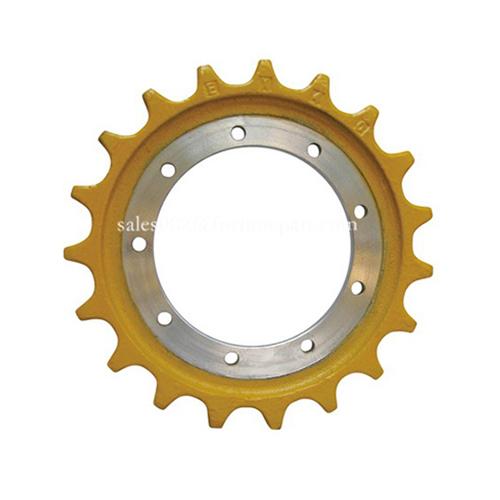

Caterpillar excavator E320 E320C E320D crawler undercarriage parts final drive gear sprocket
Our excavator sprocket is through professional quench-tempering processes to guarantee excellent mechanical properties, high strength and superior wear resistance to bending and breakage.
| Xiamen Fortune Industrial Co., Limited | |
| Product Name | Caterpillar excavator undercarriage spare parts final drive gear sprocket,track segments teeth |
| Production Standard | OEM installment size |
| Material | 50Mn/40MnB/42MnB purchase from first class steel plant |
| Finish | Smooth |
| Painting Color | Black or yellow |
| Process | Forging & casting |
| Surface Hardness | HRC52-58, Depth:8mm-12mm |
| Quality Guarantee | One Year |
| Certification | ISO9001-9002 |
| Delivery Time | Within 10--20 days after advance payment receive |
| Package | Fumigate seaworthy packing and Export Standard Package |
| Payment Term | TT, L/C, Paypal, Western union,D/P |
| Business Scope | excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc |
| Our excavator drive wheel advantage(Why Choose our undercarriage parts) |
| 1.Quench-tempering processes to guarantee genuine mechanical properties |
| 2. High hardness :HRC52-58,deepth:8mm-12mm |
| 3. Deep hardened wear surface |
| 4. High strength and superior wear resistence to bending and breakage |
| 5.Strict Quality Control |
| 6.Precise design and carefully manufactured |
| 7.Certificated by ISO9001:2008 |
| 8.Produce as per client's samples,designs and drawings |

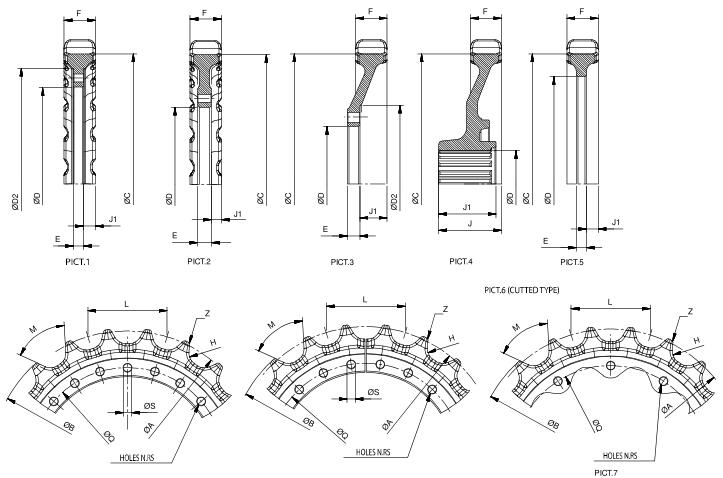

Caterpillar E320D excavator sprocket rim drawing
Our excavator undercarriage parts production main certificate

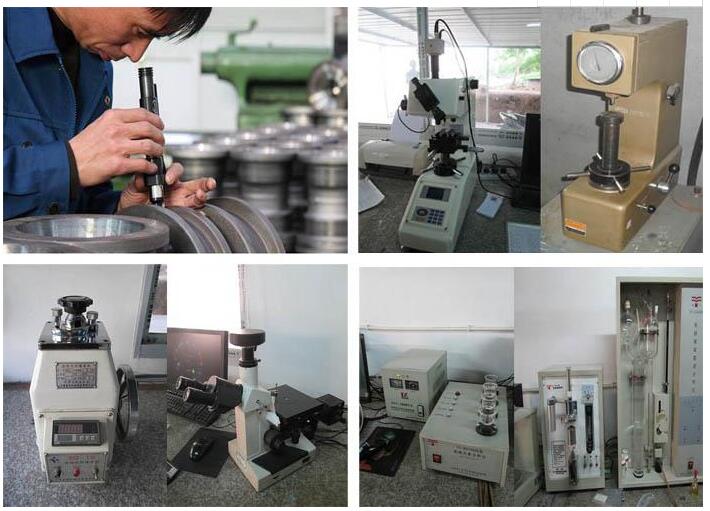

Excavator track roller quality inspection equipment
Hot selling excavator and dozer undercarriage spare parts
Caterpillar excavator and bulldozer undercarriage final gear sprockets and segment group part number and Berco number list
| Sprocket Segment Group/Drive Wheel | ||||
| Machine | Part No. | Berco NO. | ITM No. | Segment Part No. |
| D3/C, 931B, 933B | 6Y2047 | CR4754 | S01035C0M00 | 9W9266 |
| D4H | 7G0841 | CR4373 | S01045K0M00 | 6Y5245 |
| D4H-HD, 5M, D5N | S01045L0M00 | CR5601 | S01045L0M00 | 1080946 |
| D5, D5B, 953B | 7P2636 | CR4408 | S01055D0M00 | 6Y5244 |
| D5/ D5SA/ D5LGP/561C | 5S4825/ 5S4826 | |||
| D5C | 8E7298 | CR5412 | S01055E0M00 | 2x 1149278 + 3x 6I9526 |
| D5H, D5H-HD | S01055L0M00 | CR5513 | S01055L0M00 | 2x 1061624+ 3x 1061622 |
| D6C/D (5/8” H) D6D-EWL, 963 | 6P9102 | CR3330 | S01065H0M00 | 8P5837 |
| D6C/D (3/4” H) D6D-EWL, 963 | 1171618/6P9102 |
CR5476 CR3330 |
S01065H1M00 | 1171616 |
|
D6C/D6C-LGP/D6C-AS/D6D/ D6D-AS/D6D-SR/D6D-LGP/ 963/963-LGP |
6P9102 | |||
| D6H/D6H-LGP | 7G7212 | CR4879 | S01065K0M00 | 6Y2931 |
| D6R, D6H-HD | 8E9041/7G7212 |
CR5515 CR4879 |
S01065L0M00 | 1730945 |
| D6M | 6I8078 | CR5875 | S01065M0M00 | 6I8077 |
| D7E/D7F/D7G/D7G-AS/ 571(A,F,G)/572(E,F,G)/977L | 3P1039 | CR3148 | S01075G0M00V | 6T4178 |
| D7H, D7R, D8N, D8R | 9W0074/6Y3928 | CR4532 CR5050 | S01085K1M00 | 7T9773/ 6Y2354 |
| D8H/D8K/583H/ 583K/983/983B | 2P9510 | CR3144 | S01085M0M00V | 6T6782 |
| D9G, D9H | 2P9448 | CR3156 | S01095D0M00 | 6T6781 |
| D9N, D9R | 7T1246/2P9448 |
CR4686 CR3156 |
S01095N0M00 | 7T1247/7T1246 |
| D10N, D10R | 6T9538 | CR5047 | S01105N0M00 | 1299208 |
| 320/322 | 8E9805 | |||
| 330 | 6Y5685 | |||
| 345B | 124-3296 | |||
| CAT943 | 7P6504 | CR4371 | S01045D0M00 | 7T4723 |
| CAT953C | 1222277/6Y3242 | CR5975 | S01535C0M00 | 1856152 |
| 955K, 955L | 6K1430 | CR3609 | S01055C0N00 | 3x 6T7455+ 5x 6T7456 |
| 977K, 977L | 5S0058 | CR2212 | S01075F0M00 | 3S9201 |
|
E100B/ 311/ 312/ 314C |
4I7472/ 099-3220/ 096-1479 | |||
| E120B | 099-0219 | |||
| E200B/ EL200B | 096-4327/ E84690100 | |||
| E240/EL240 | 095-9779 | |||
| E300/ EL300/E300B | 099-4129 | |||
FAQ
1.What Xiamen Fortune Industrial Co.,Limited supply?
We mainly supply crawler excavator and dozer undercarriage parts, such as Track roller, Carrier roller, Sprocket, Idler,Recoil spring assy, Track chain, Track shoe, Track bolt&nut,Track chain guard, Excavator bucket,Bucket teeth&adaptor, Bucket Link,Cutting Edge and End Bits, Hydraulic Cylinder, Bucket pin&bush,Slewing Bearing, Long reach boom and arm, etc.
2.How to confirm the spare parts will fit our crawler excavator and dozer?
Please send us your excavator and dozer model name, part number, Berco number, or technical drawings and dimensions
3.How about the construction machinery excavator and dozer undercarriage parts Quality Control?
We have an excellent QC system, the QC team will inspect every production process,quality and specification, to be sure best quality and correct size, untill packages finished and loaded into container.
4.What is payment term?
TT, L/C, Paypal, Western Union, other payment term also can be negotiated.
Choose genuine quality final drive gear sprocket for construction machinery parts,
Fortunepart will be your best undercarriage parts supplier in China.
